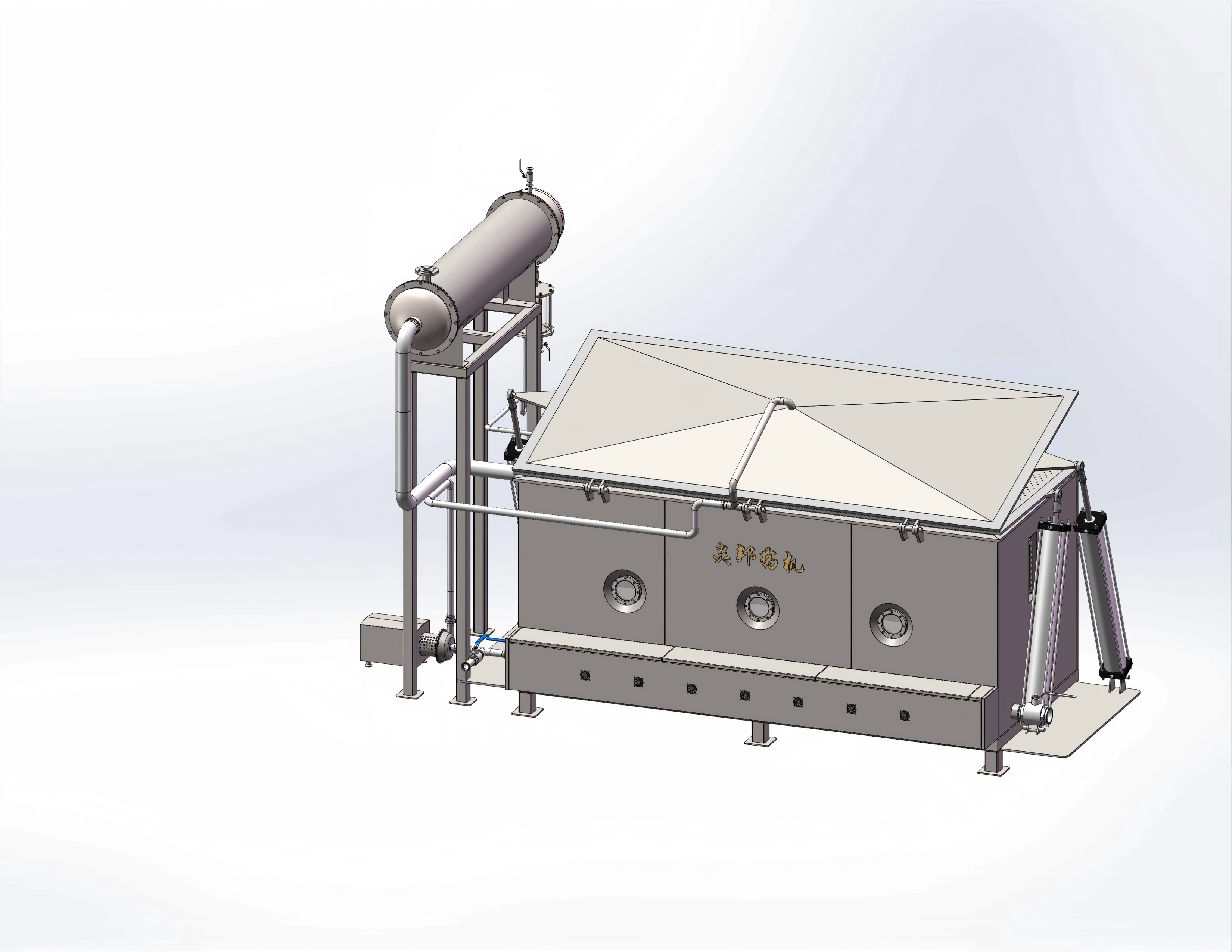

超声波低温喷淋浸提设备

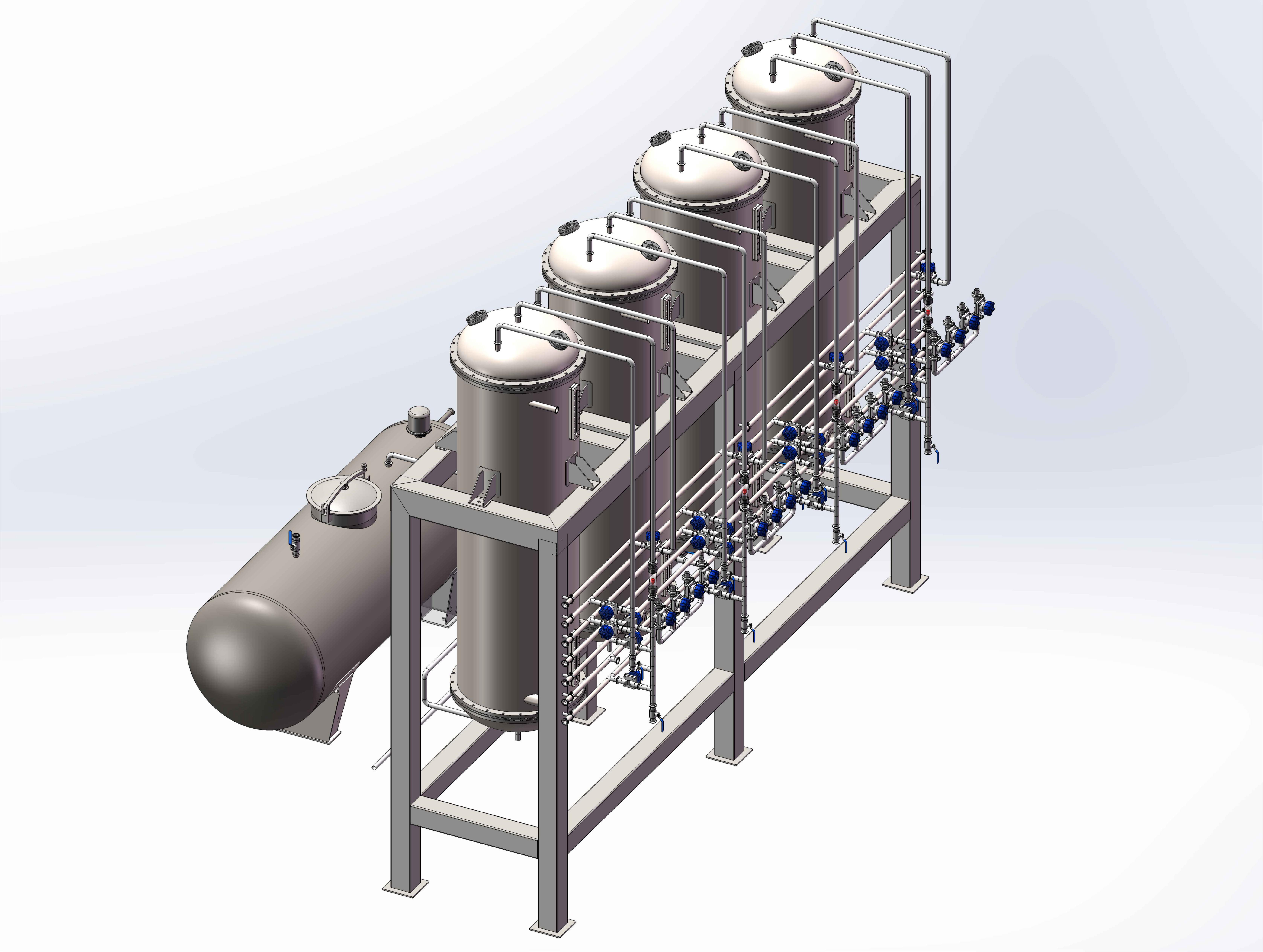

纯化分离

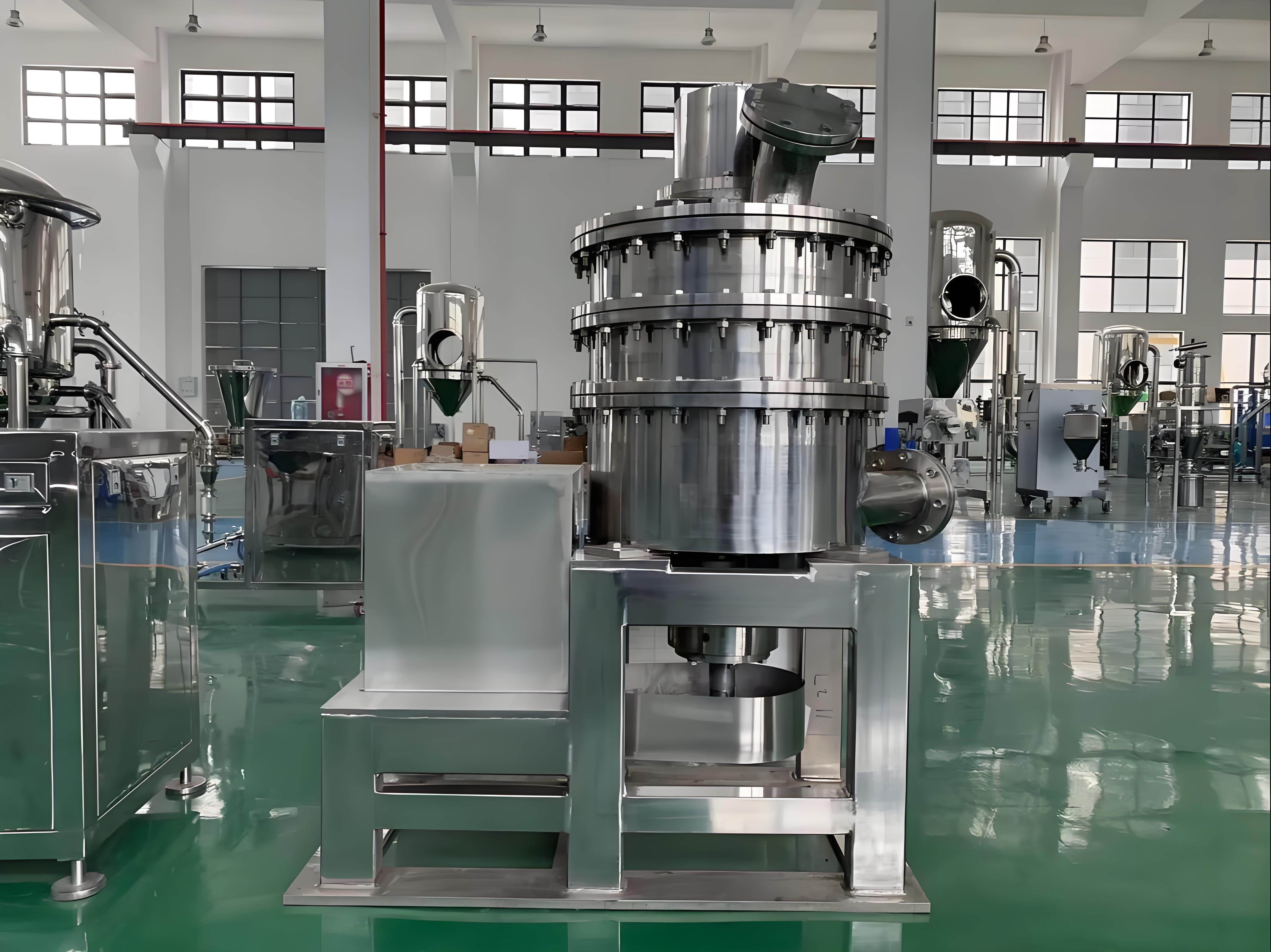

重力提香机核心结构，收集罐中的香氛液通过管路泵回至浓缩产品中

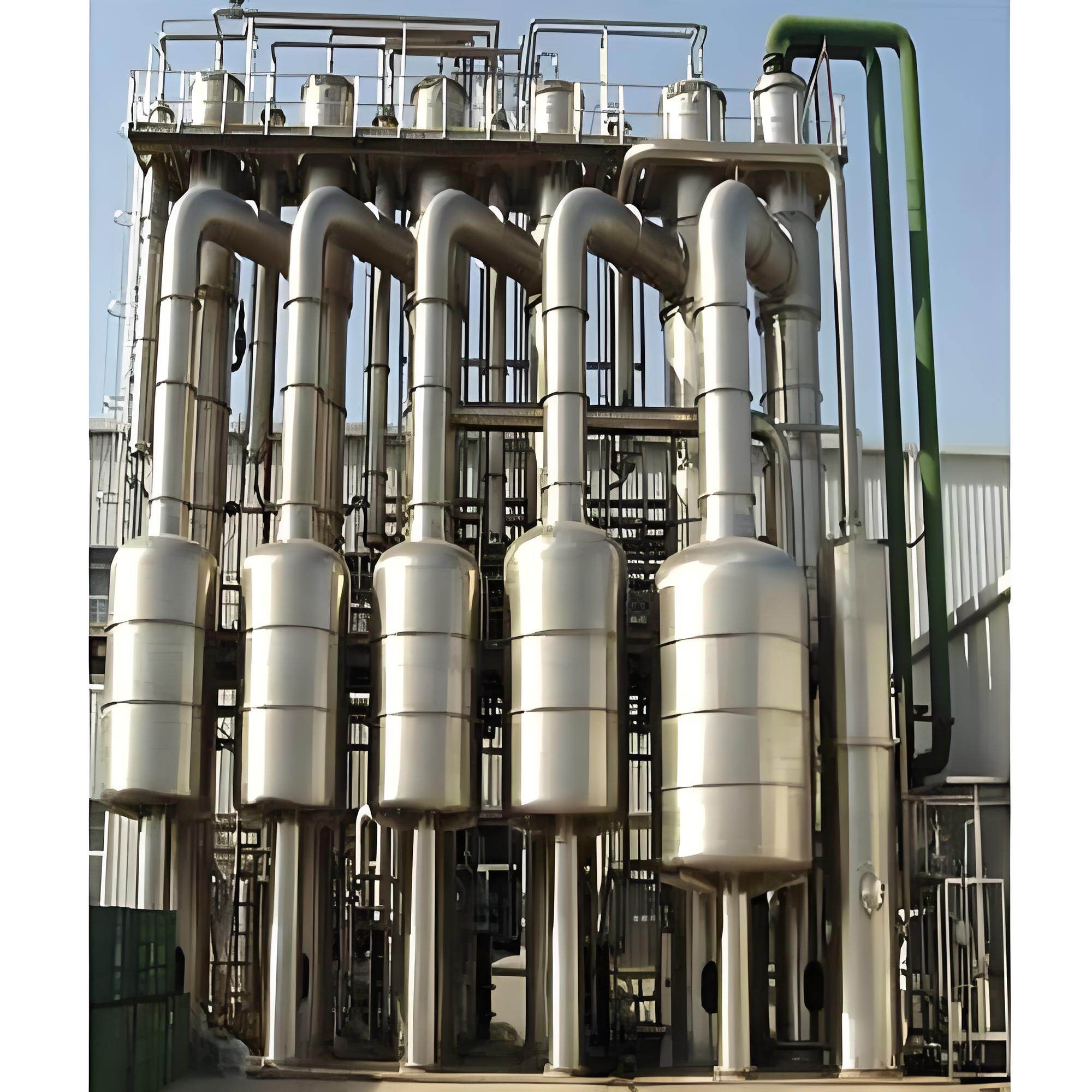

低温降膜蒸发器

MVR废水蒸发器，制药浓缩设备

• ✓产品概述MVR（Mechanical Vapor Recompression，机械蒸汽再压缩）蒸发器是当今国际领先的高效节能蒸发浓缩设备。它利用压缩机对蒸发过程中产生的二次蒸汽进行压缩，提高其温度和压力后重新作为加热热源循环利用，实现蒸汽潜热的循环再生，大幅降低能耗与运行成本，是传统多效蒸发器的理想替代方案。工作原理物料进入蒸发器加热浓缩，产生的二次蒸汽经蒸汽压缩机绝热压缩后，温度与压力显著提升，再送入加热器作为热源加热物料，蒸汽释放潜热后冷凝成水排出。整个系统仅需少量启动蒸汽和电能驱动，即可连续稳定运行，实现 "一度电回收数十倍蒸汽潜热" 的节能效果。核心优势极致节能：无需锅炉供汽，吨水耗电量仅 20~60kW・h，较传统蒸发器节约运行成本 50%~70%低碳环保：冷凝水与二次蒸汽全部回收利用，实现废水近零排放，符合绿色制造要求智能控制：全自动 PLC 控制，温度、压力、液位、浓度实时在线监测，一人可监管多套系统低温浓缩：适用于热敏性物料，有效保护有效成分，产品品质更佳运行稳定：核心部件选用高耐蚀材质（304/316L / 钛材 / 哈氏合金），适应多种复杂工况应用领域工业废水处理（高盐废水、化工废水、电镀废水等）制药浓缩（中药提取液、原料药浓缩）食品饮料（果汁、乳品、调味品浓缩）化工、盐化工（氯化钠、硫酸钠等结晶蒸发）生物发酵、环保零排放工程技术参数（典型范围）表格参数范围蒸发量0.5～100 t/h运行温度40～110℃（可低温运行）压缩比1.6～2.2材质304 / 316L / 钛材 / 哈氏合金加热形式降膜 / 强制循环 / 外循环MVR Evaporator — Product Introduction (English)OverviewThe MVR (Mechanical Vapor Recompression) Evaporator is a world-leading, energy-efficient evaporation and concentration system. It compresses the secondary vapor generated during evaporation with a steam compressor, raising its temperature and pressure so it can be reused as the heating source. This recovers the latent heat of vaporization, dramatically cutting energy consumption and operating costs — the ideal replacement for traditional multi-effect evaporators.Working PrincipleThe feed liquid is heated and concentrated in the evaporator. The secondary vapor is adiabatically compressed by the vapor compressor, raising its temperature and pressure before being fed back into the heater to heat the feed. After releasing its latent heat, the vapor condenses into water and is discharged. The system runs continuously and steadily with only minimal start-up steam and electric power — recovering dozens of times the latent heat for each unit of electricity consumed.Key AdvantagesUltimate energy saving: No boiler steam required; power consumption of only 20–60 kW·h per ton of water evaporated; operating costs reduced by 50%–70% vs. traditional evaporatorsLow carbon & environmental: Condensate and secondary vapor fully recovered, achieving near-zero liquid dischargeIntelligent control: Fully automatic PLC control with real-time monitoring of temperature, pressure, level and concentrationLow-temperature concentration: Ideal for heat-sensitive materials, preserving active ingredients and product qualityStable operation: Core components in 304 / 316L / Titanium / Hastelloy for demanding conditionsApplicationsIndustrial wastewater treatment (high-salinity, chemical, electroplating)Pharmaceutical concentration (herbal extracts, API concentration)Food & beverage (juice, dairy, condiment concentration)Chemical & salt industry (NaCl, Na₂SO₄ crystallization)Biological fermentation & zero-discharge projectsTypical Specifications表格ParameterRangeEvaporation capacity0.5–100 t/hOperating temperature40–110°C (low-temp available)Compression ratio1.6–2.2Materials304 / 316L / Titanium / HastelloyHeating typeFalling film / Forced circulation / External circulation
